D1146 Crankshaft Parts:
1. 65.02101-7540 [1] - CRANK SHAFT ASS'Y
2. 65.02101-7024 [1] - CRANK SHAFT ASS'Y
3. 65.02101-0024 [1] - SHAFT;CRANK
4. 65.90430-0014B [12] - BOLT;CRANK SHAFT
5. 65.02110-0011 [6] - WEIGHT;BALANCE
6. 65.02101-0056 [1] - CRANK SHAFT ASS'Y
7. 65.02115-0040K [1] - GEAR;CRANK SHAFT
8. 06.22022-0912 [1] - PIN;DOWEL

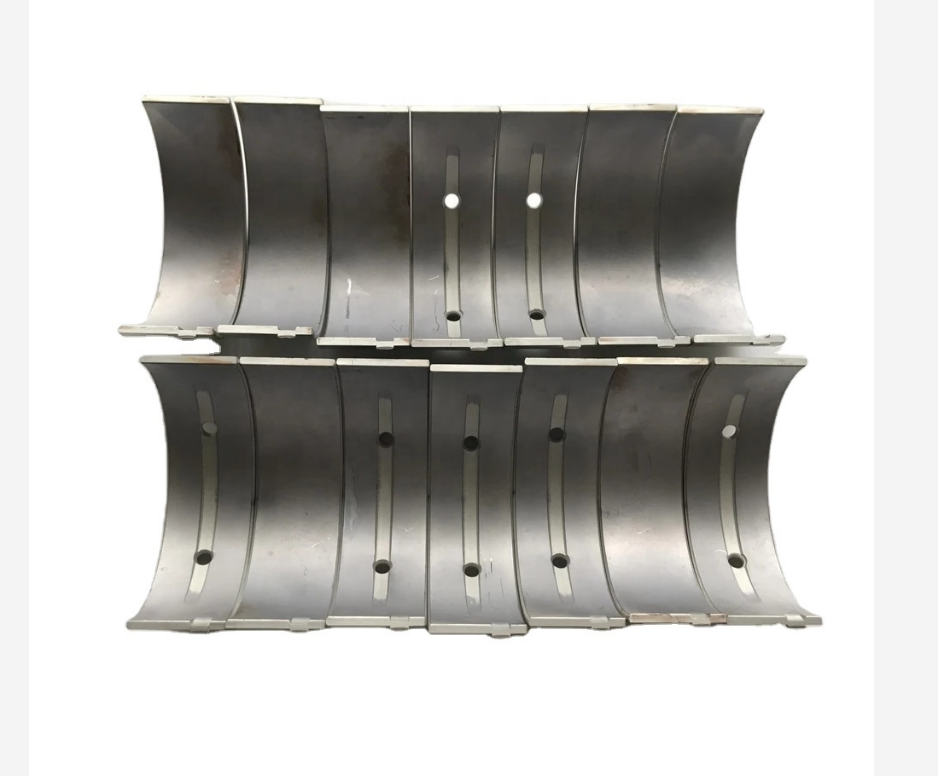

11. 65.01110-6351 [7] - METAL;MAIN STD
11. 65.01110-6352 [-] - METAL;MAIN 0.25
11. 65.01110-6353 [-] - METAL;MAIN 0.50
11. 65.01110-6354 [-] - METAL;MAIN 0.75
12. 65.01150-0015 [2] - WASHER;THRUST(UPPER)
12. 65.01150-0019 [-] - WASHER;THRUST(0.25)
12. 65.01150-0020 [-] - WASHER;THRUST(0.50)
13. 65.01150-0016 [2] - WASHER;THRUST(LOWER) STD.
13. 65.01150-0023 [-] - WASHER;THRUST(LOWER) 0.25
13. 65.01150-0024 [-] - WASHER;THRUST(LOWER) 0.50
14. 65.02201-7032 [1] - DAMPER;VIBRATION
16. 06.01913-3215 [6] - BOLT ASS'Y M10X25
17. 65.02601-0168 [1] - PULLEY;V-BELT
18. 65.90720-0022 [1] - WASHER 65.90720-0088
18. [-] - 06.02106-0619
18. 65.90720-0088 [1] - WASHER
19. 06.02106-0620 [8] - BOLT;SOCKET HEAD 06.02106-0619
19. [-] - 65.90720-0088
19. 06.02106-0619 [8] - BOLT;SOCKET HEAD
20. 65.02301-5062 [1] - FLY WHEEL ASS'Y
21. 65.02301-0215 [1] - WHEEL;FLY
22. 65.02310-0010A [1] - GEAR;STARTER RING
23. 06.22220-1208 [1] - PIN;SPIRAL LOCK 8X16 06.22022-1010
23. 06.22022-1010 [1] - PIN ; DOWEL
24. 06.16731-2110 [6] - WASHER;SPRING
25. 65.90001-0084 [6] - BOLT;HEX. M14X1.5X40
26. 65.01505-0030 [1] - COVER;DUST
